POKAI TECHNOLOGY CO., LTD.

PK-DS-112E / PK-DS-112E30W

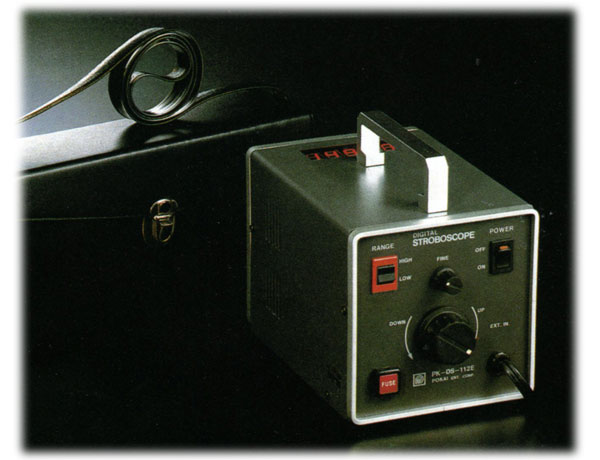

Digital STROBOSCOPE PK-DS-112E / PK-DS-112E30W

FEATURES :

◎	No need for connection to AC power.
◎	Flash rate to 15,000 per minute.
◎	Quartz crystal accuracy, ±0.01%.
◎	Recharge indicator on display.
◎	10-turn control knob: any desired value can be easily set.
◎	5-digit LED readout; no calibration is ever necessary.
◎	Accurate, bright, compact.
	TOP

OPERATION :

1.	Plug the power cord in the 012V4.
2.	Press the power switch on.
3.	Point the flash light at the repetitive motion.
4.	Turn the control knobs from hight to low speed, until the first stationery image appears.
5.	RPM is instantly displayed.
Note: The stationery image may be easily confirmed, if reference marks of the moving object are taken into account.
	TOP

ACCESSORIES :

012V4 Battery Pack : 2 Packs
012V6 Battery Pack
Recharge battery Pack in vinyle carrying case with strap, containing a sealed, maintenance-free battery.
Nominal Voltage: DC12V
Nominal Capacity: 6AH(20H.R.);4 AH
Dimensions: 13 x 25 x 8 cm ; 9 x 10 x 8 cm
Weight: 2.7 kgs ; 1.6 kgs

439109 Charger
Input: AC110V±10% or AC220V±100%
Output: DC12V 1A
Dimensions: 6 x 7 x 5 cm
Weight: 0.3 kg

TOP

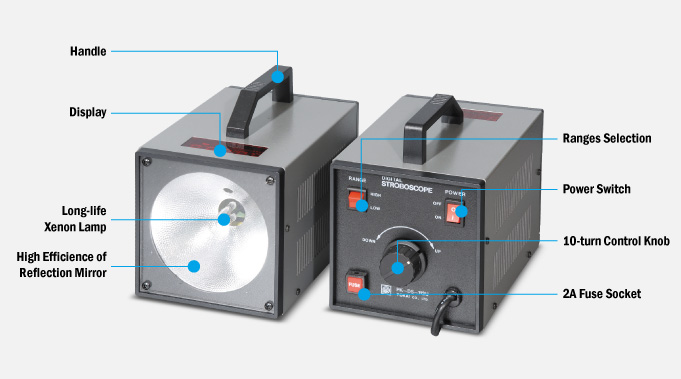

PARTS NAME:

TOP

SPECIFICATIONS :

Model No.:	PK-DS-112E	PK-DS-112E30W
Flash Rate Ranges	150 ~ 15000FPM(RPM) in 2 ranges	60 ~ 6000FPM(RPM) in 2 ranges
Accuracy	±(0.01% + 1count) crystal-control time base
Digital Display	5 big 0.5" high LED's
Gate Time	1 second
Flash Tube	10W	30W
Environment	0 ~ 50℃
Power Supply	012V4 Rchargeable Battery Pack or equipment of DC12V
Dimensions	19 x 12 x 13 cm (exclusive of handle hight 3.5cm)
Weight	Approx. 1.3Kg
Accessaries supplied	2 packs of 012V4 Rechargeable Battery Pack 1 pc. of 439109 Charger
	Due to improvement, specifications may change without notice.

■	With over 30 years of exclusive research, POKAI offers 35 models of stroboscopes for proper choice.
